Description
The StarTech ST122UTPA VGA Video Extender Kit provides a straightforward solution for point-to-point digital signage applications requiring audio support. It extends VGA signals along with corresponding audio to a remote display via a CAT-5 cable (sold separately).

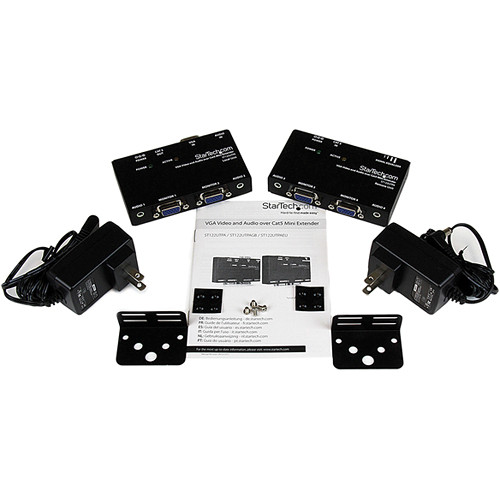

This kit enables the distribution of content from a single PC to up to 4 monitors. The transmitter sends video and audio signals to the receiver over a standard 4-pair CAT5 or the recommended CAT5e UTP cable, which can be extended up to 500’ away. For convenient installation, the kit includes mounting brackets for both the transmitter and receiver, allowing for a neat setup on walls, desks, or cabinets.
Additional information
| Weight | 1.95 lbs |
|---|---|
| Dimensions | 9.4 × 7.4 × 2.6 in |
| Ports | 2 |
| Cabling Type | CAT-5e UTP or better |

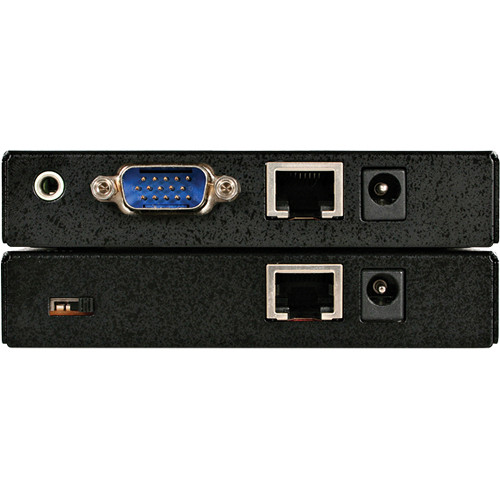

| Connectors | Local Unit: 1 x RJ-45 female, 1 x VGA (15 pin; high density D-Sub) male, 2 x 3.5 mm mini-jack (3-position) female, and 2 x VGA (15-pin; high density D-Sub) female<br> Remote Unit: 1 x RJ-45 female, 2 x 3.5 mm mini-jack (3-position) female, and 2 x VGA (15-pin; high density D-Sub) female |
| LEDs | 1 x Power, 1 x Activity |
| Maximum Cable Length | 500.0' (152.4 m) |
| Maximum Distance | 500.0' (152.4 m) |
| Supported Resolutions | Maximum: 1440 x 900 at 150.0' (45.7 m)<br>1280 x 1024 at 300.0' (91.4 m)<br>1024 x 768 at 500.0' (152.4 m) |
| Output Voltage | 9 VDC |
| Output Current | 0.6 A |
| Center Tip Polarity | Positive |
| Enclosure Type | Aluminum |
| Power Adapter | 9 VDC, 600 mA, center positive |
| Dimensions (L x W x H) | 2.4 x 3.3 x 0.8" (6.0 x 8.3 x 2.0 cm) |
