Description

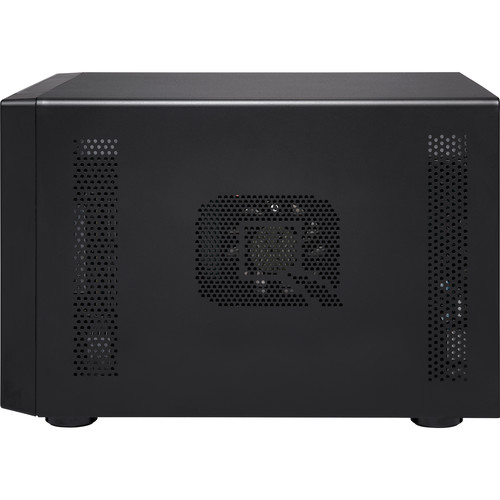

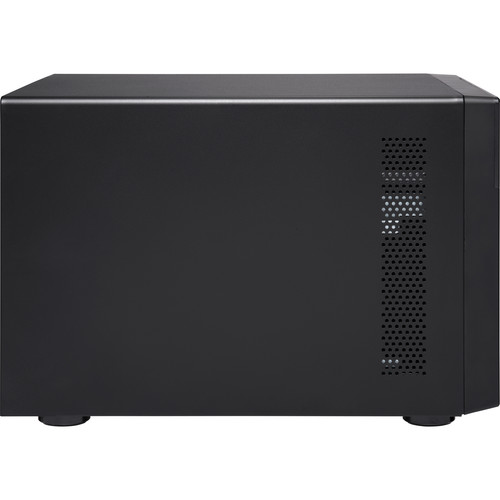

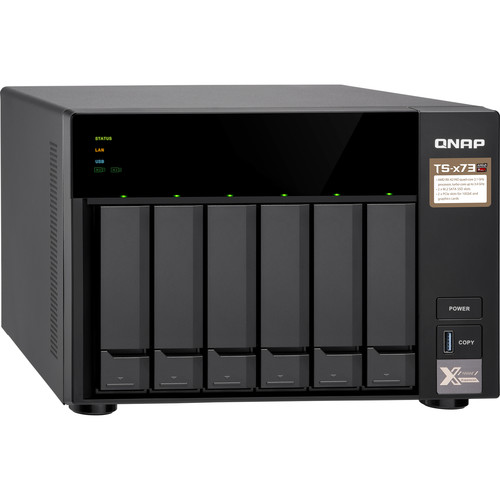

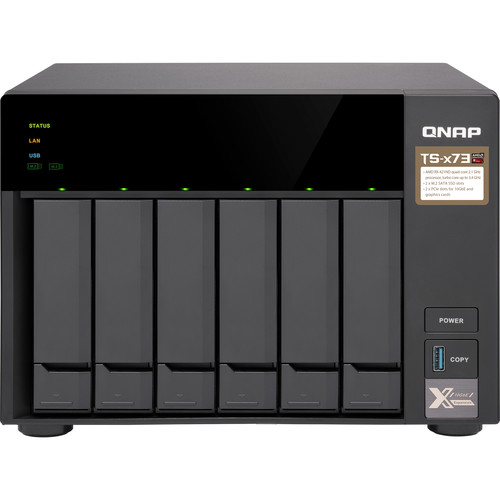

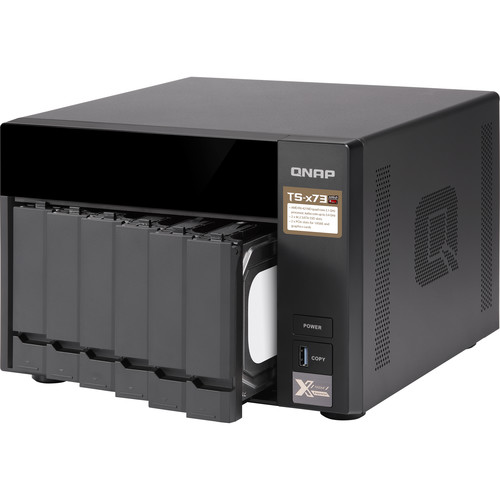

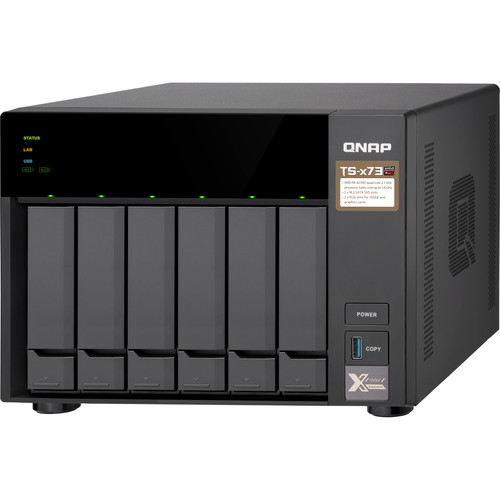

The QNAP TS-673 is a powerful and efficient 6-bay NAS storage solution designed for high-performance needs. Powered by a 2.1 GHz AMD RX-421ND Quad-Core processor with a boost up to 3.4 GHz and 4GB DDR4 RAM (expandable to 64GB), it provides robust data management and multitasking capabilities. Two PCIe 3.0 x4 slots allow for flexible expansion options including M.2 SSD caching, 10GbE connectivity, wireless networking, and entry-level graphics cards.
The TS-673 achieves network connectivity via four Gigabit Ethernet ports, and supports up to 2190 MB/s read and 1775 MB/s write speeds with dual 10GbE cards. It supports 3.5″ SATA III hard drives natively and 2.5″ drives and SSDs via included screws, plus two M.2 SATA III SSD slots, all benefiting from SSD caching. Four 5 Gb/s USB 3.0 ports enable easy data transfer and expansion. The TS-673 is compatible with RAID 0, 1, 5, 6, 10, 50, and 60 configurations, as well as JBOD and single disk modes, ensuring data redundancy and performance flexibility. Advanced security features include AES-NI and FIPS 140-2 AES 256-bit encryption. Comes with a power cord, Ethernet cables, M.2 heatsinks, and screws for 2.5″ and M.2 SSD installation, backed by a 2-year limited warranty.
Additional information
| Weight | 16.25 lbs |
|---|---|
| Dimensions | 16.7 × 15.6 × 11.8 in |
| CPU | 2.1 GHz AMD R-Series RX-421ND Quad-Core (64-bit, up to 3.4 GHz) |
| Power Consumption | HDD Standby: 35.11 W<br> In Operation: 63.69 W |
| QVPN Service | VPN Server<br> – Secure remote access with PPTP, L2TP/IPSec, and OpenVPN VPN services<br> – Support for a maximum of 100 clients<br> – Support for domain users<br><br> VPN Client<br> – Support for PPTP, L2TP/IPSec, and OpenVPN VPN protocols<br> – OVPN file importing for creation of OpenVPN connections<br><br> Easy VPN Connection (Windows VPN Utility)<br><br> Note: QVPN combines an integrated VPN Server, a VPN client, and L2TP/IPSec VPN services |
| Security | Network access protection with auto-blocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP) Host access control for shared folders (CIFS/SMB) 140-2 validated AES 256-bit volume-based and shared folder data encryption (FIPS) 256-bit external drive encryption (AES) Importing of SSL certificates from Let's Encrypt Instant alerts through email, SMS, push service, and audio 2-step verification |
| Network & Virtual Switch | – TCP/IP: Dual stack (IPv4 and IPv6)<br> – Jumbo frame (failover, multi-IP settings, port trunking/NIC teaming)<br> – DHCP server and client<br> – USB Wi-Fi adapter (Note: This feature does not support ad hoc networks because of security considerations)<br> – Virtual Switch<br> Virtual switch editing in Virtualization Station Combining virtual machines and containers in the same virtual switch Network Address Translation (NAT) Spanning Tree Protocol (STP)<br> – WirelessAP Station |
| File System | Internal Hard Drives<br> EXT4<br><br> External Hard Drives<br> EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT<br><br> Note: To use exFAT you must purchase an exFAT driver license from License Center |
| Supported Languages | Chinese (traditional and simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish |
| Supported Browsers | Apple Safari 7 or later Google Chrome Microsoft Internet Explorer 10 or later Mozilla Firefox |
| Client Operating Systems | Apple Mac OS 10.7 or later Linux and UNIX Microsoft Windows 7, 8, and 10 Microsoft Windows Server 2003, 2008 R2, 2012, 2012 R2, and 2016 |
| Operating System | QTS 4.3.4 (embedded Linux) |
| Security Slot | Kensington security slot |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 81°F / 27°C |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Fan | System: 2 x 90 mm<br> CPU: 1 x 60 mm |
| Power Supply Unit | 250 W, 100 to 240 VAC, 50/60 Hz |
| Sound Level | Sound Pressure (LpAm): 23 dBA |
| Form Factor | Tower |
| Encryption Engine | AES-NI |
| M.2 SSD Slots | 2 x M.2 2260/2280 SATA III 6 Gb/s SSDs (sold separately)<br><br> Note: M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD |
| System Memory | 4 GB of DDR4 RAM (2 x 2 GB) |
| Maximum Memory | 64 GB (4 x 16 GB) |
| Memory Slots | 4 x SO-DIMM DDR4<br><br> Note: For dual-or quad-DIMM configurations, you must use a pair of identical DDR4 modules |
| Flash Memory | 512 MB DOM |
| Drive Bays | 6 x SATA III 6 Gb/s |
| Drive Compatibility | 3.5" SATA hard disk drives 2.5" SATA hard disk drives 2.5" SATA solid-state drives |

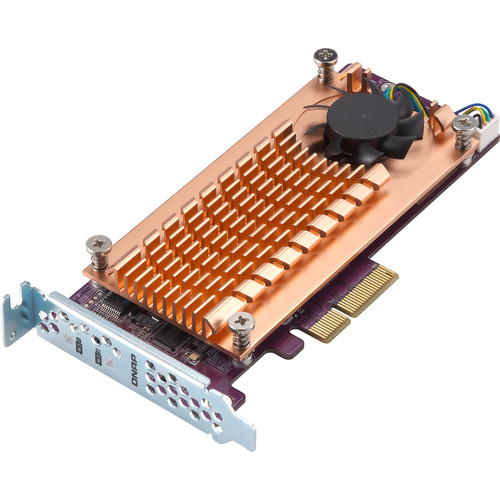

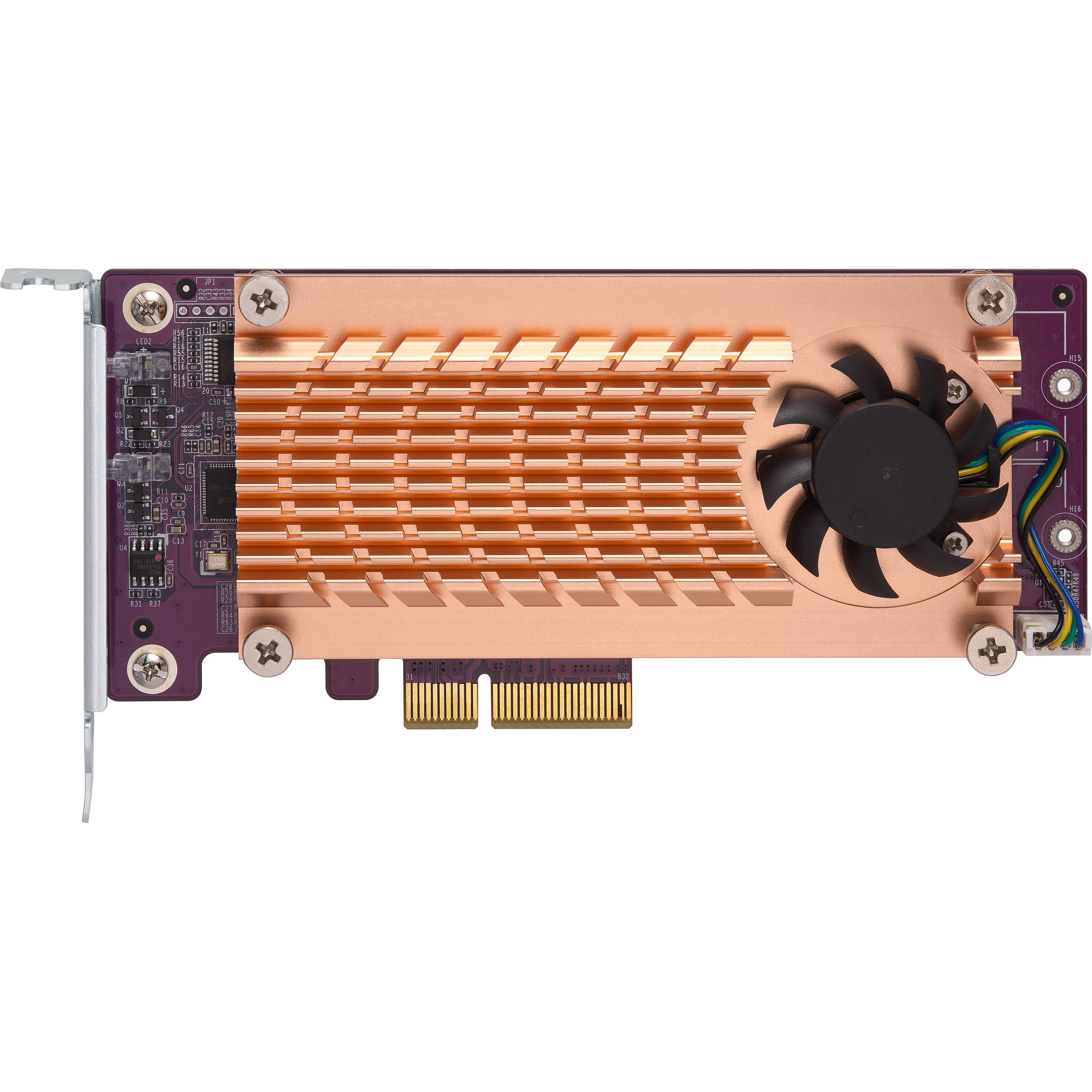

| SSD Cache Acceleration Support | Drive bays 1 to 6 M.2 slots 1 to 2 Optional: M.2 SSD using QNAP QM2 PCIe expansion card |
| IR Sensor | Optional QNAP RM-IR004 remote control (MCE compatible) |
| Hot-Swappable | Yes, except M.2 SSDs, SSD cache drives, and SSDs using PCIe expansion slots |

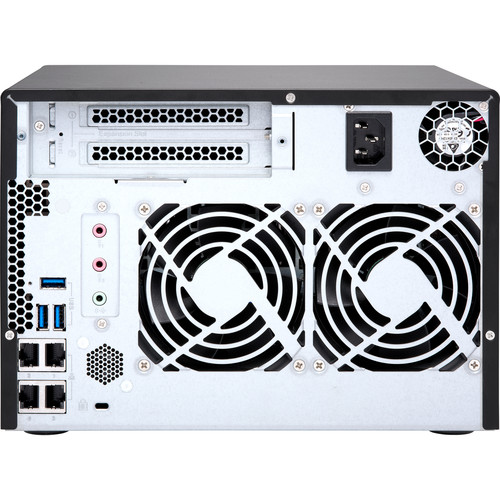

| Gigabit Ethernet Port | 4 x RJ45 Gigabit LAN ports |
| PCIe Slot | 2 x PCIe 3.0 x4 slots<br><br> Note: Supports a low-profile 10GbE LAN card, 10 Gb/s USB 3.1 Gen 2 expansion card, QM2 card, PCIe wireless network card, or a bus-powered graphics card |
| USB Ports | 4 x USB 3.0 Type-A ports (1 front, 3 rear) |
| Audio | 2 x 3.5 mm dynamic microphone jacks 1 x 3.5 mm line-out jack 1 x speaker<br><br> Note: You cannot use the speakers and the line-out jack simultaneously |
| USB One Touch Copy | Front: USB 3.0 |
| iSCSI (IP SAN) | iSCSI targets with multiple LUNs per target (Note: The maximum number of targets is 256) LUN mapping and masking Online LUN capacity expansion SPC-3 persistent reservation MPIO & MC/S iSCSI Extensions for RDMA (iSER) with VMware ESXi (Note: This feature requires an Intel or AMD-based NAS with a PCIe slot, and a compatible Mellanox network card) iSCSI LUN backup, one-time snapshot, and restoration Virtual disks using iSCSI initiator (Note: The maximum number of virtual disks is eight) Stack chaining master |
