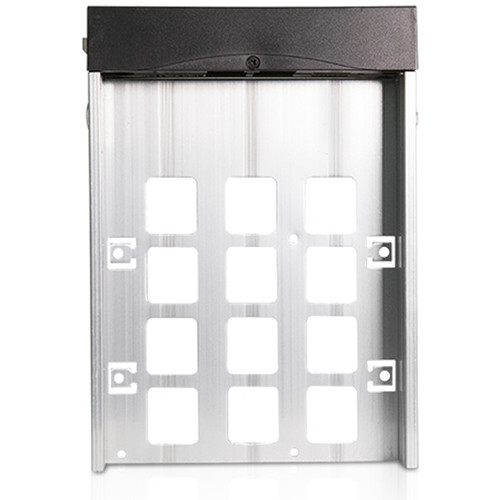

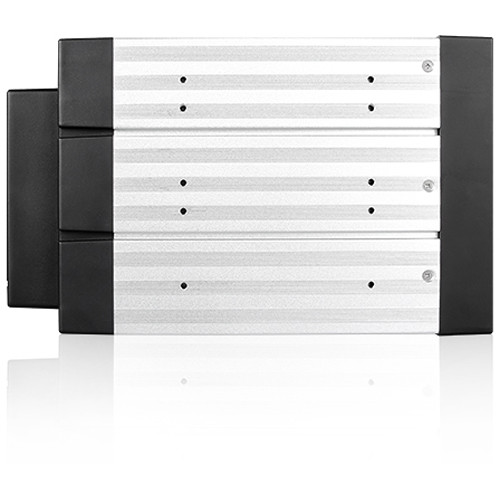

iStarUSA BPU-340SATA – 3 x 5.25″ to 4 x 3.5″/2.5″ SAS SATA 6Gbps Hot-Swap Rack with Key Lock
$80.99
High-density storage solution with hot-swap capability, ideal for high-performance applications like video editing and data backup.
In stock
Description

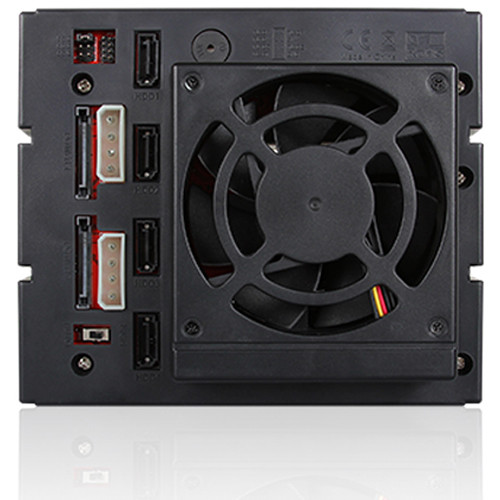

Achieve high-level RAID and storage availability with the iStarUSA BPU-340SATA series, designed for demanding applications. This compact solution integrates a high-density multi-disk storage backplane that supports four 3.5″ SAS/SATA drives in three 5.25″ drive bays, with RAID configurations (1/0/1+0/5) for enhanced performance or data redundancy. Constructed from aluminum for optimal heat dissipation and featuring an 80mm cooling fan, it ensures reliability for high-performance SAS/SATA drives.
Ideal for applications such as digital audio and video editing, security systems, and SOHO SME data protection and disk-to-disk backup.
Additional information
| Weight | 3.87 lbs |
|---|---|
| Dimensions | 10 × 7.1 × 6.5 in |
| Number of Hard Drives Supported | 4 |
| Material | Aluminum<br />Plastic |
| Environmentally Friendly | Yes |
| Depth | 8" |
| Width | 5.8" |
| Height | 5" |
| Compatible Drive Bay Width | 5.25" |
| Form Factor | Internal |
| Cooling Fan | Yes |
| Color | Black |
| Number of Total Expansion Bays | 4 |
| Host Interface | 6Gb/s SAS<br />Serial ATA/600 |
| Drive Interface | 6Gb/s SAS<br />Serial ATA/600 |
| Number of 1.8" Bays | No |
| Number of 2.5"/3.5" Bays | No |
| Number of 2.5" Bays | No |
| Number of 3.5" Bays | 4 |
| Number of 5.25" Bays | No |
| Environmental Certification | RoHS |
