Description

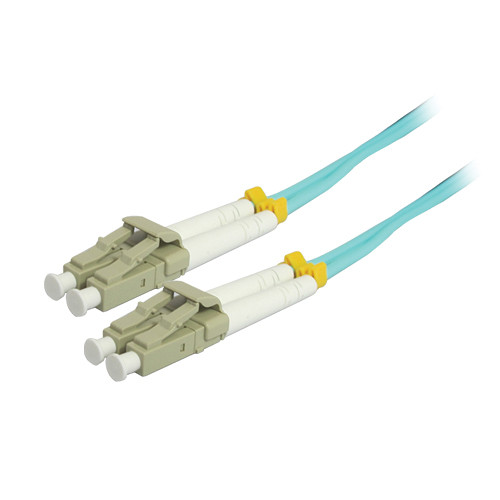

High-Performance 10GB Multimode Fiber Patch Cable
Upgrade your network infrastructure with the Comprehensive 10GB LC/LC Duplex 50/125 Multimode Fiber Patch Cable, designed for high-speed data transmission. This 16.4′ aqua colored cable is optimized for laser sources, ensuring reliable 10 Gigabit Ethernet connections.
Key Features:
- OM3 Fiber Cable: Supports 2,000 MHz/km EMB at 850nm for fast data transfer.
- LC/LC Duplex Connector: Ensures secure and stable connections.
- 10 Gigabit Performance: Enables data transfer up to 984.2′ (300m) at 850nm using VCSEL sources.
- Backward Compatible: Compatible with existing 50/125 equipment.
- Durable Construction: PVC jacket with OFNR rating for reliability.
This 10GB multimode fiber patch cable is ideal for data centers, enterprise networks, and high-bandwidth applications. The aqua color coding indicates its OM3 rating, ensuring you can easily identify and manage your fiber connections.
With its high-quality construction and performance, this Comprehensive fiber patch cable is a reliable choice for building and maintaining high-speed networks.
Additional information
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 6.8 × 5.9 × 0.5 in |
| Connector | 2 x LC male |
| Fiber Type | Optical Multimode 3 (OM3) fiber supporting 2, 000 MHz/km EMB at 850 nm |
| Loss | Maximum Connector Loss: 0.3 dB<br>Typical Connector Loss: 0.2 dB<br>Typical Return Loss: -25 dB |
| Construction | Buffer Material: PVC<br>Buffer OD: 0.035" (900 µm)<br>Jacket Material: PVC (OFNR riser-rated)<br>Jacket OD: 0.1" (3.0 mm) |
| Additional | Installation Tensile Load: 100 N (445 lb / 202 kg)<br> Long-Term Tensile Load: 50 N (222 lb / 101 kg)<br> Maximum Tensile Load: 100 N/cm<br> Installation (Loaded) Minimum Bend Radius: 1.97" (5.00 cm)<br> Long-Term (Unloaded) Minimum Bend Radius: 1.2" (3.0 cm)<br> Crush Resistance: 750 N/cm<br> Impact Resistance: 1, 000 cycles<br> Flex Resistance: 5, 000 cycles<br> Attenuation at 1, 300 nm: 1 dB/km<br> Attenuation at 850 nm: 3.5 dB/km |
| Operating Temperature | -4 to 176°F (-20 to 80°C) |
| Compliance | RoHS |
| Dimensions (H x W x D) | LC Connector: 0.4 x 0.5 x 2.0" (10.8 x 12.5 x 50.0 mm) (with installed duplex clip) |
| Cable Length | 16.4' (5.0 m) |
