Description

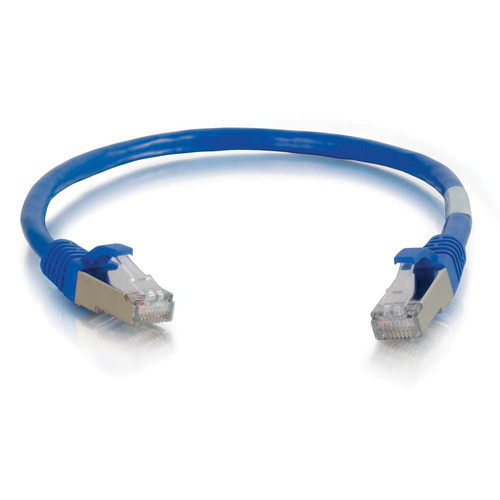

C2G 5ft Cat6A Shielded Network Patch Cable – Blue
The C2G 5ft Cat6A Snagless Shielded (STP) Network Patch Cable in blue is engineered to deliver high-speed, reliable connections for your network infrastructure. Designed for compatibility with 10GBase-T ports and equipment such as routers, hubs, switches, network adapters, DSL/cable modems, and patch panels, this cable ensures optimal performance and reduced interference.
Key Features:
- Shielded Twisted Pair (STP) construction protects against electromagnetic interference (EMI) and noise, ensuring a stable 10 Gigabit network connection.
- Cat6A Performance: Capable of handling high-bandwidth applications, reducing structural return loss and impedance for voice, data, and video distribution.
- Twist Spacing Maintained: Each cable pair is bonded to preserve twist spacing from connector to connector, minimizing Near-End Crosstalk (NEXT) levels.
- ANSI/TIA 568 C.2 Cat6a Compliant: Tested to meet or exceed component requirements for Cat6a, ensuring high-quality performance.

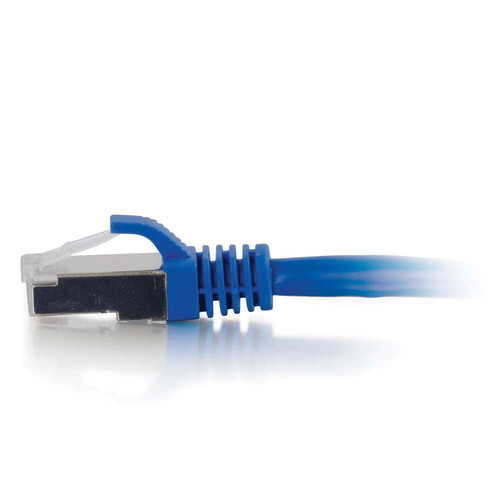

- Snagless Design: Features a snagless boot to prevent cable damage and ensure a secure connection.
Upgrade your network infrastructure with the C2G 5ft Cat6A Shielded Network Patch Cable. Its robust design and high-performance capabilities make it ideal for demanding network environments, providing a fast, reliable, and interference-free connection.
Additional information
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 9.1 × 4.7 × 0.8 in |
| Cable Type | Stranded SSTP |
| Foil Shield | Aluminum foil (100% coverage) |
| Hood | Molded Snagless PVC, UL94V-0 |
| Contacts | 50 µm Gold Plated |
| Housing | Polycarbonate, UL94V-0 |
| Shell | Nickel plated for shielding |
| Connector 2 | 8P8C (RJ-45) Male |
| Connector 1 | 8P8C (RJ-45) Male |
| OD | 6.2 ± 0.20 |
| Jacket | PVC |
| Braided Shield | Copper braid (40% coverage) |
| Package Type | Polybag |
| Wiring Scheme | T568B |
| Approvals | CE |
| Voltage Rating | 30 V |
| Delay Skew | 45 ns / 100 m (maximum) |
| Propogation Delay | 545 ns / 100 m (maximum) |
| Capacitance | 5600 pf / 100 m |
| Impedance | 100 Ω |
| Conductor DC Resistance | 9.38 Ω |
| Conductor (4 Pair) | Type: 26 AWG (7/0.16) (bare copper)<br> Insulation: FM-PE<br> Twist Pair: Orange, White/Orange, Blue, White/Blue, Green, White/Green, Brown, White/Brown |
| Testing Types | ANSI/TIA 568 C.2 Cat6a component tested |
| Temperature Rating | 167°F (75.0°C) |
| Length | 5' / 1.5 m |
